|Panel width：||1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized widths.|
|Panel length：||2440mm or cut to size|
|Top skin：||0.5mm or 0.7mm|
|Core：||0.23mm thick corrugated aluminium|
|Coating：||PVDF, FEVE, PE|

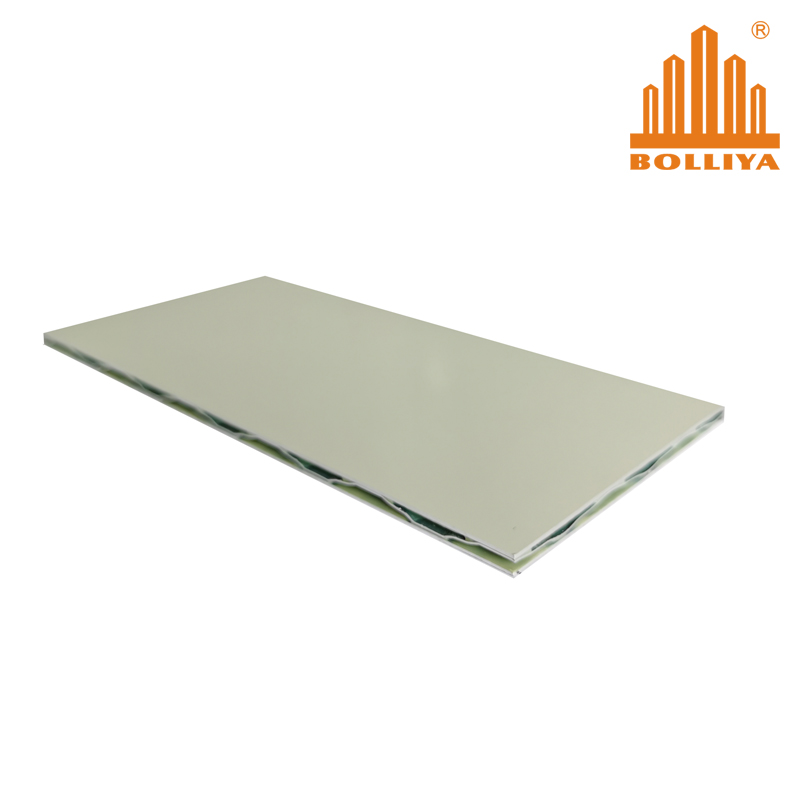

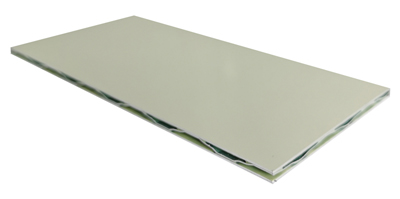

Bolliya Aluminium Corrugated Core Composite Panel (G2), in the market is also known as G2 or ACCP, is consisted of two aluminium sheets bonded to a corrugated aluminium core, bonded by adhesion film or two components PU glue or adhesive film. As the main components of this panel are aluminium, so the fire retardant property is A2 FR grade.
Basic information of Aluminium Corrugated Core Composite Panel (G2):
Panel width: 1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized widths.
Panel length: 2440mm or cut to size
Panel thickness: 4mm
Top skin: 0.5mm or 0.7mm
Bottom skin: 0.5mm
Core: 0.23mm thick corrugated aluminium
Coating: PVDF, FEVE, PE
Bolliya aluminium corrugated core composite panel is available in many different colors and patterns, including special colors of wood pattern, stone pattern, corten steel look, copper patina look, bi-color etc.
1. Aluminium Corrugated Core Composite Panel (G2)is A2 FR composite panel, can meet the demand of projects that require higher fire safety materials.
2. It comes in same thickness like standard aluminium composite panel, in 4mm thick. And can be fabricated same way and same tools, joined with same framing and same accessories like aluminium composite panel, easy to use.
3. It's much lighter in weight. A 4mm thick aluminium core composite panel is just about 4.5kgs/sq.m, much lighter when comparing to solid aluminium sheet 4mm which is 10.88kgs.
The Aluminium corrugated core composite panel (ACCP) is majorly used for facade cladding of high-rise building, airports, train stations, hotels, stadium whereas a A2 FR cladding material is needed.

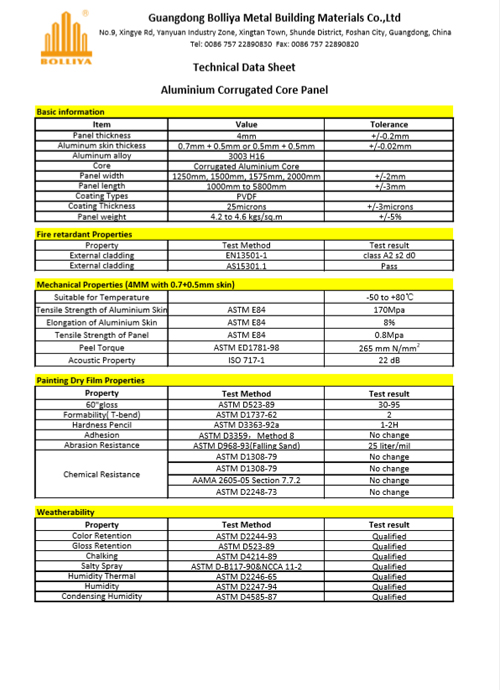

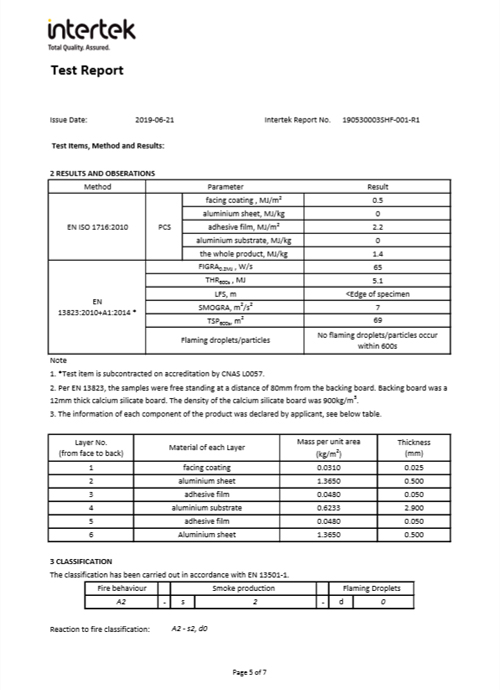

Test Reports of Bolliya Aluminium Corrugated Core Composite Panel (G2):
Home Bush Residential Apartment, Australia
