|Panel width：||1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized widths.|
|Panel length：||2440mm, 3200mm, 4880mm, 5800mm or cut to size|
3mm, 4mm, 5mm, 6mm, up to 10mm
|Aluminium skin thickness：||
0.2mm, 0.3mm, 0.4mm, 0.5mm
AA1100, AA3003, AA5005
FR B1 (EN13501-1), FR Class O (BS476 Part 6 & 7)
|Coating：||PVDF, FEVE, PE, Anodized etc|

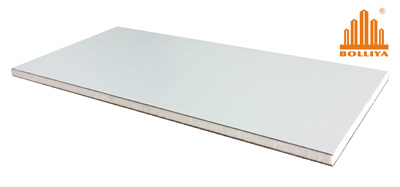

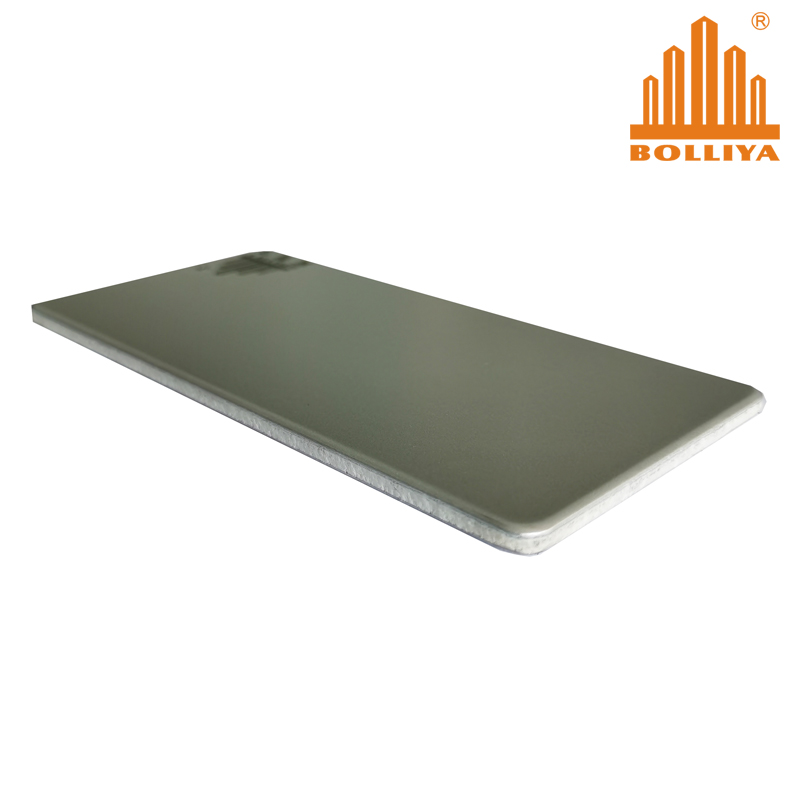

Bolliya FR B1 Aluminium Composite Panel is a sandwich panel that is consisted of two sheet of aluminum bonded to a mineral filled fire retardant core. The FR B1 core is a mixture of fire retardant materials mixed with LDPE materials. The fire retardant material is majorly Mg(OH)2 or Al(OH)3, under heat it will react with oxygen and during this process it will absorb heat & release H2O which will greatly slow down the fire from spreading and more importantly it won't release toxic black smoke like flammable material does. So for buildings that use FR B1 ACP as decorative materials, in case of fire accident, the fire retardant property will helps to give me time for people inside the building to evacuate and reduce the casualty and loss to the minimum. The surface of FR B1 ACP is same like normal ACP, that is finished with PVDF, FEVE, PE or Anodic coating. In recent 10 years, quite a lot of big fires worldwide were pointing to the reason of using flammable decorative materials, thus it's very meaningful to use FR materials for this sake.

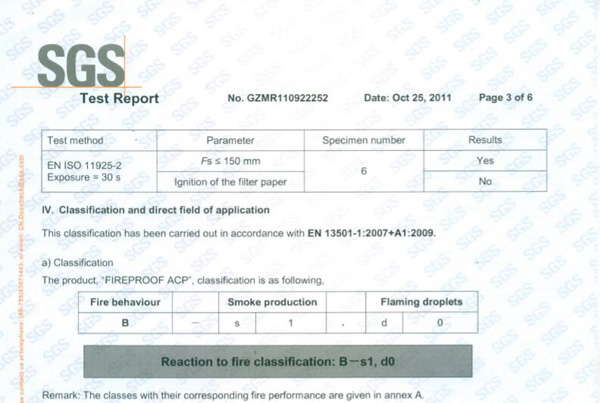

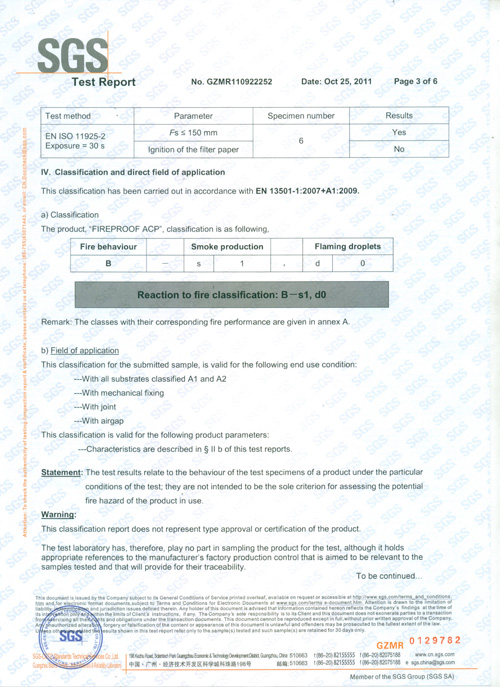

Bolliya FR B1 Aluminium composite panel (fire retardant aluminium composite panel) complies with China GB8624 and Europe EN13501-1 to be classified as B-s1-d0, and BS476 part 6 & 7 to be classified as class O, France NF P 92-507 to be classified as M1, Australia AS1530.3 can pass, ASTM E84 classified as class A.
Width: 1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized with within 2000mm
Panel length: 2440mm, 3200mm, 4800mm, 5800mm or cut to size
Panel thickness: 3mm, 4mm, 6mm up to 10mm, or customize thickness
Aluminium skin thickness: 0.2mm, 0.3mm, 0.4mm, 0.5mm
Finish: PVDF, FEVE, Polyester, Anodized, Spectra, Nano etc
Core: Mineral Filled Fire retardant core B1 grade
Bolliya FR B1 Aluminiumcomposite panel is available in many different colors and patterns, including special colors of wood pattern, stone pattern, corten steel look, copper patina look, bi-color etc.
1. FR B1 ACP has all the features of general LDPE core ACP has, it's also available in many different colors and finishes, light weighted, super flat etc.
2. It's for fire safety reason. The mineral filled fire retardant core burns very slowly and have just little smoke emission during fire accident, that's the biggest difference it has when comparing to other flammable decorative materials which would release black toxic smoke and help the fire to spread. The FR B1 Aluminium composite panel panel is reasonable to be used for facade and interior cladding.
3. Bolliya use the 3rd general aluminium composite panel production to produce the FR B1, with high production volume output and high yield rate, thus we are able to make the Bolliya FR B1 Aluminium Composite Panel at very good price and can fit most cladding project's budget.
4. Bolliya FR B1 Aluminium Composite Panel has been tested to many different fire retardant standards and also have installed in so many projects, the quality of FR B1 Aluminium composite panel has been tested by the market.
5. Bolliya FR B1 can be made into maximum 2000mm wide, this give more possibilities for architects to create a more neat building elevation.
Bolliya FR B1 Aluminium Composite Panel is majorly used for facade cladding, interior wall decoration, ceiling decoration whereas a fire retardant aluminium composite panel is required. It can also be used for industrial purpose such as for truck box wall, furniture etc.

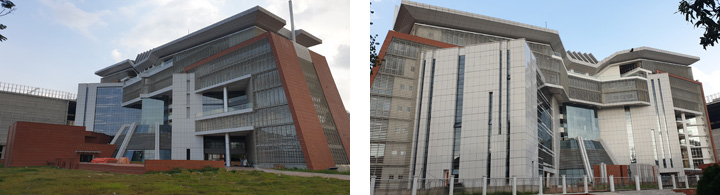

CAAB Headquarter, Bangladesh
BOLLIYA, makes your architectural dream come true…
