Fiberglass Honeycomb Panel (FRP)

Model: Honeycomb Panel

Panel width： 1220mm, 1500mm, 2000mm, 2200mm or customized widths.

Panel length： 2440mm, 3200mm, 4880mm, 5800mm or cut to size

Panel thickness： 10mm, 15mm, 25mm, 50mm, 100mm or tailor-made thickness

FRP skin thickness： 1mm, 1.5, 2mm or customized thickness

Material： Fiberglass (FRP, GRP)

Core： Aluminium Honeycomb Core

Coating： Mill finish, Gel coat

Product Description

Download

Inquiry

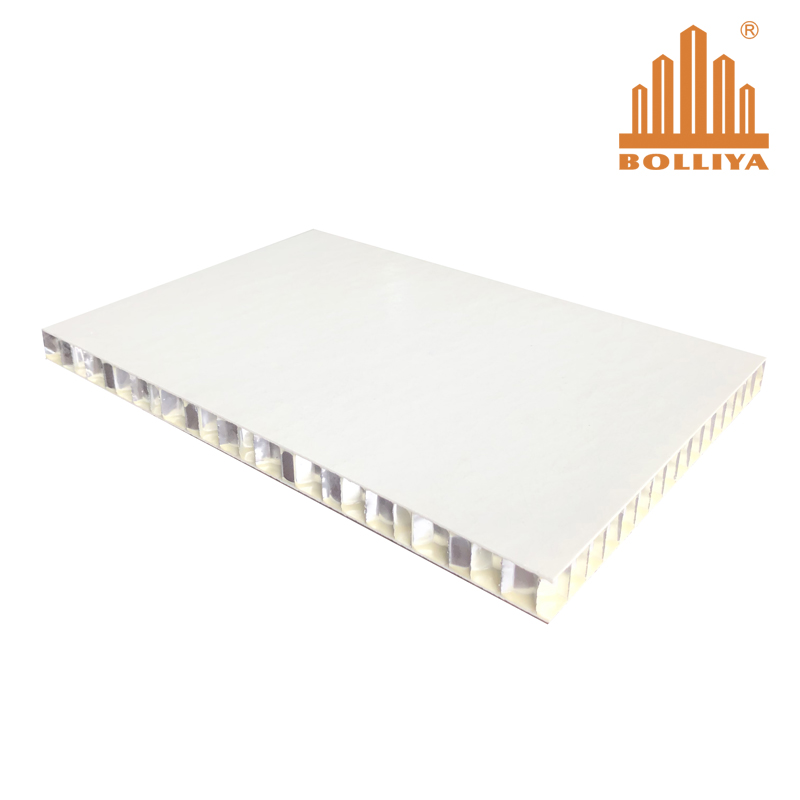

Bolliya Fiberglass Honeycomb Panel (FRP Honeycomb Panel)

What is Fiberglass Honeycomb Panel (FRP honeycomb Panel)?

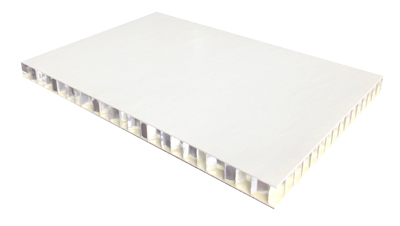

Bolliya Fiberglass Honeycomb Panel (FRP honeycomb Panel) is made with two fiberglass (FRP) sheets as top skin and bottom skin, laminated to an aluminium honeycomb core by using two components PU glue. Fiberglass (FRP) is light-weighted, economic in cost but has super anti-corrosive property.

Fiberglass Honeycomb Panel (FRP honeycomb Panel)

Specifications of Bolliya Fiberglass Honeycomb Panel (FRP Honeycomb Panel):

Panel width: 1000mm, 1220mm, 2000mm

Panel length: 2440mm or cut to size

FRP skin thickness: 0.8mm, 1mm, 1.5mm, 2mm

Core: Aluminium honeycomb core alloy 3003

Panel thickness: 10mm, 15mm, 20mm, 25mm or made to order

Shape of panel: flat panel

Finish: Mill finish without gel coat, or glossy white surface with gel coat

Features of Fiberglass Honeycomb Panel (FRP Honeycomb Panel):

1. Fiberglass honeycomb panel is very light weighted, strong and impact resistance.

2. FRP honeycomb panel keeps the same good property of FRP sheets to have good anti-acid and anti-corrosion property.

3. FRP honeycomb panel can be made into big panel size up to 2200x11800mm.

Applications of Fiberglass Honeycomb Panel (FRP Honeycomb Panel):

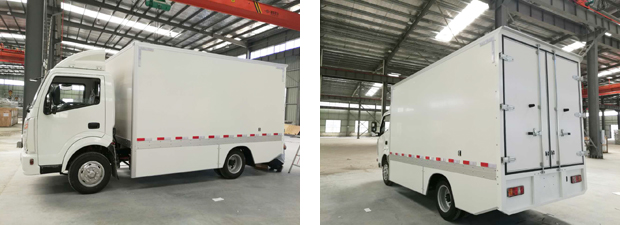

It is used for truck box wall panels, substrate panel of stone honeycomb panel.
